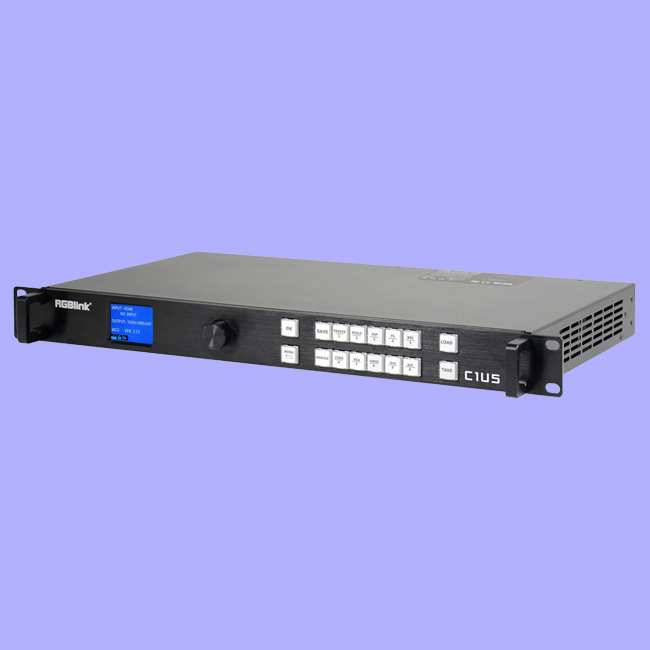

C1US
• Picture in Picture Operation
• Audio and Video Sync
• Seamless Switching
• Fade-in and Fade-out Switch
• User-defined Output Resolution Adjustment
• Output test Pattern Generator
• EDID Management
• Mounted-in slot available for LED sender cards

A popular and economical choice, C1US is designed for easy and quick use for on demand video wall applications.
Featuring as standard HDMI, DVI, VGA and Composite as well as 3G-SDI inputs , C1US also includes external audio input and output support.
Dual slots for popular LED Sender Cards are provided, allowing the cards to be installed directly inside the processor, reducing the need for additional equipment.
C1US is available from selected partners wordwide.

Connectors
INPUT
Standard with:
HDMI In/Loop: 2xHDMI-A
DVI: 1xDVI-I
VGA: 1xDB15
SDI In/Loop: 2xBNC
CVBS : 1xBNC
Audio L/R: 2xRCA
Optional:
DVI Module: 1xDVI-I
VGA Module: 1xDB15
HDMI Module: 2xHDMI-A(1 In/1 LooP)
CVBS Module: 1xBNC
3G SDI Module: 2xBNC(1 In/1 LooP)
USB Module: 2xUSB-A(1 In/1 Backup)
DP Module: 1xDisplayPort

OUTPUT
Standard with
DVI: 2xDVI-I
Audio L/R: 2xRCA

COMMUNICATION
1xRJ11: Serial RS232 In
1xUSB-B: Serial USB In

POWER
1xIEC

Performance
INPUT RESOLUTIONS
DVI | HDMI |DisplayPort
SMPTE 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60
VESA 800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1366x768@60 |
1600x1200@60 | 1920x1080@60
VGA
VESA 800x600@60 | 1024x768@60 | 1280x1024@60 | 1366x768@60 | 1440x900@60 |
1600x1200@60
CVBS
SMPTE 480i | 576i
SDI
SMPTE 480i | 576i | 720p@25/30/50/60Hz | 1080i@50/59.94/60Hz |
Ova e-maila adresa je zaštićena od spambotova. Omogućite JavaScript da biste je vidjeli./24/25/29.97/30/50/59.94/60Hz

OUTPUT RESOLUTIONS
Select from below or configure customized
SMPTE 720p@50/60 | 1080p@50/60
VESA 1024x768@60 | 1280x720@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 |
1366x768@60 | 1440x900@60 | 1400x1050@60 | 1600x1200@60 | 1680x1050@60 |
1920x1080@60 | 1920x1200@60 | 2048x1152@60 | 2560x816@60

SUPPORTED STANDARD
SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
VGA: UXGA
HDMI: 1.3
USB: 2.0
DisplayPort: 1.1

GREY LEVEL
10 Bit

Power
INPUT VOLTAGE
AC 100V-240V, 50/60Hz
MAX POWER
65W

Enviroment
TEMPERATURE
0℃～55℃
HUDMIDITY
20%~90%

DIMENSION
480mmx295mmx58mm
