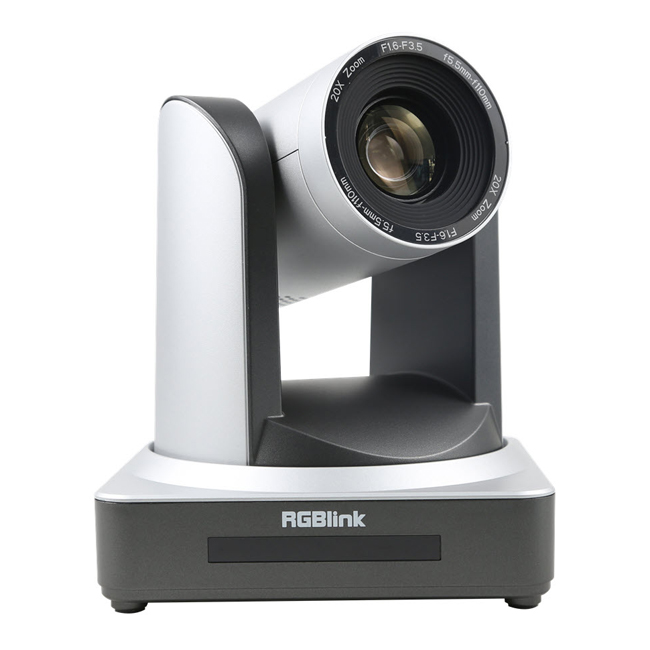

• Two models 20x & 12x with high speed optical zoom
• High performance in low light with Wide Dynamic Range
• White Balance control
• 1920x1080p FullHD camera resolution up to 60fps
• H.265/H.264 dual stream output adaption
• HDMI & SDI outputs

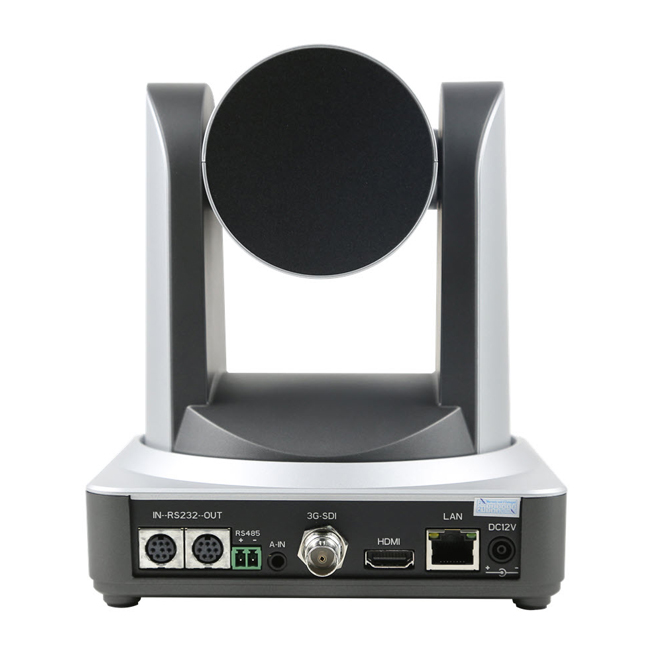

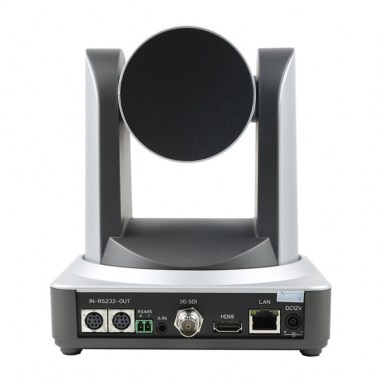

Connectors
Video(Output)
HDMI: 1×HDMI-A
SDI: 1×BNC
NDI: 1×RJ45
Audio
Input: 1×3.5mm Stereo Jack
Communication
RS232: 2×DIN 8
RS485: 1×2 Pin Terminal Connector
Network: 1×100Mbps(10/100BASE-TX)
Power
1×HEC3800 DC Socket

Performance
Camera
Optical Zoom: 20X f＝5.5～110mm
View Angle: 3.3°～ 54.7°
AV: F1.6 ～ F3.5
Digital Zoom: 10X
Minimum Illumination: 0.5Lux (F1.8，AGC ON)
DNR: 2D & 3D DNR
White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus: Auto/Manual
Aperture/Electronic Shutter: Auto/Manual
BLC: ON/OFF
WDR: OFF/Dynamic Level Adjustment
Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
SNR: >55dB
Effective Pixels: 2.07m,16:9
Pan-and-Tilt Parameter
Pan/Tilt Movement: -170°～+170°/'-30°～+90°
Pan/Tilt Control Speed: 0.1～60°/S；0.1～30°/S
Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
Audio Compression Format
AAC,MP3,G.711A
Video Compression Format
H.264, H.265,Dual Streaming Output
Output Resolutions
720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
Control Protocol
VISCA | Pelco-D | Pelco-P
Baud Rate(bps)
115200 | 9600 | 4800 | 2400bps
Network Protocol
RTSP | RTMP | ONVIF | GB/T28181 | VISCA
Supported Standards
HDMI: 1.3
SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-AS

Power
Input Voltage
DC12V/1.5A
Max Power
12W

Environment
Temperature
-10℃～50℃
Humidity
20%～80%

Physical
Weight
Net: 1.4kg
Dimension
Net: 150mm×150mm×167.5mm
