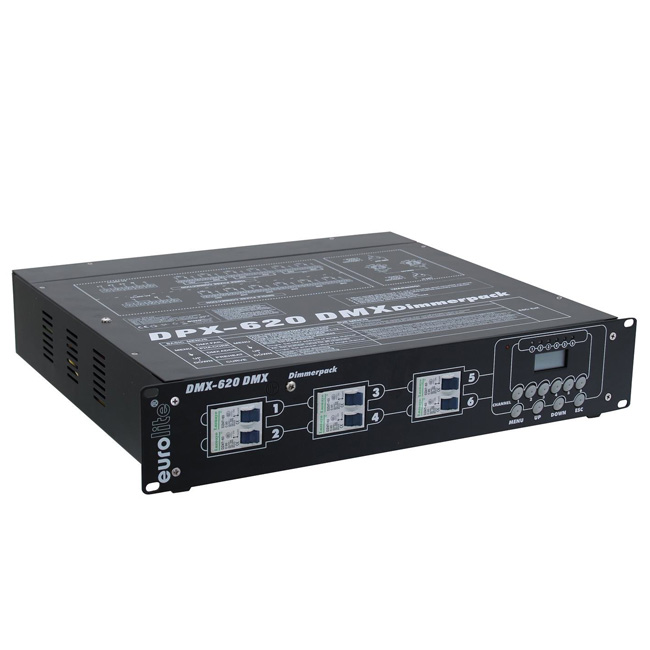

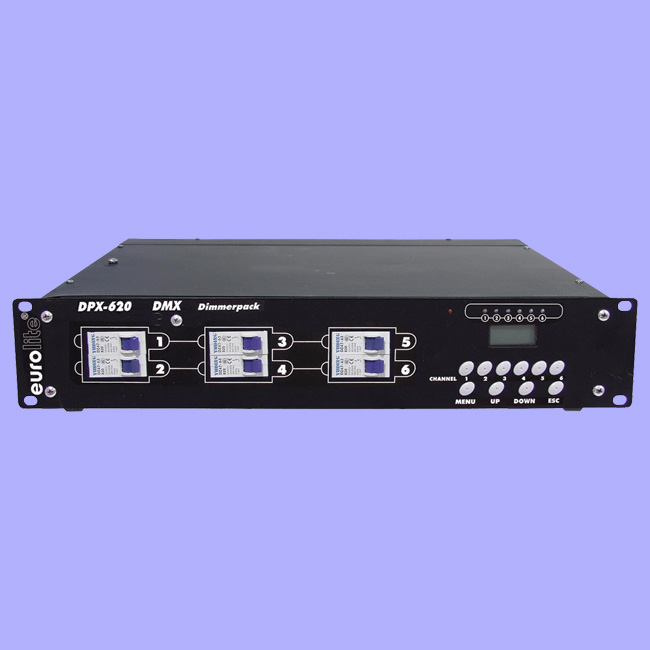

EUROLITE DPX-620 DMX Dimmer Pack

Digital 6-channel dimmer pack
• Universal dimmer pack for professional use
• Can be operated 1-phase or 3-phase
• 6 x 20 A
• DMX-control or analogue control possible
• The DMX-starting address can be adjusted on the device
• Synchronisation of several DPX-620 possible via DMX
• Adjusting the lamp pre-heat
• All modes are displayed via LEDs and the display
• With automatic circuit breaker per channel

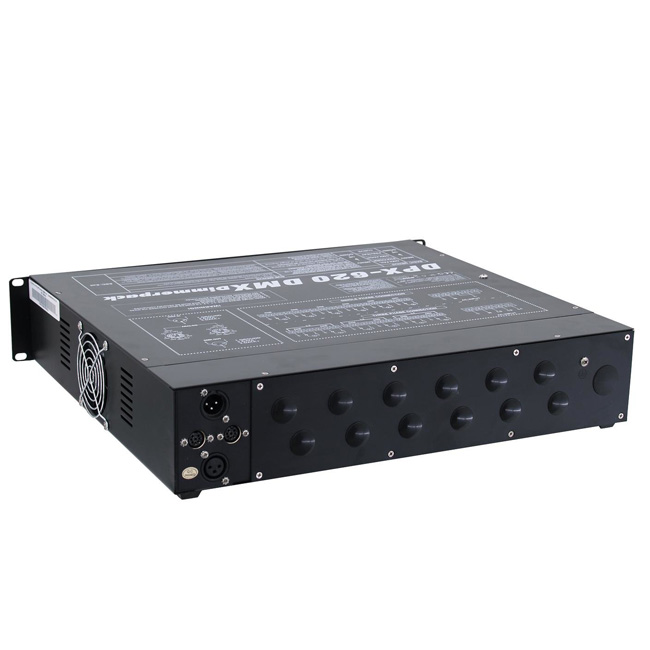

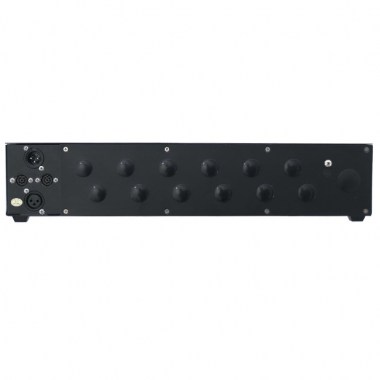

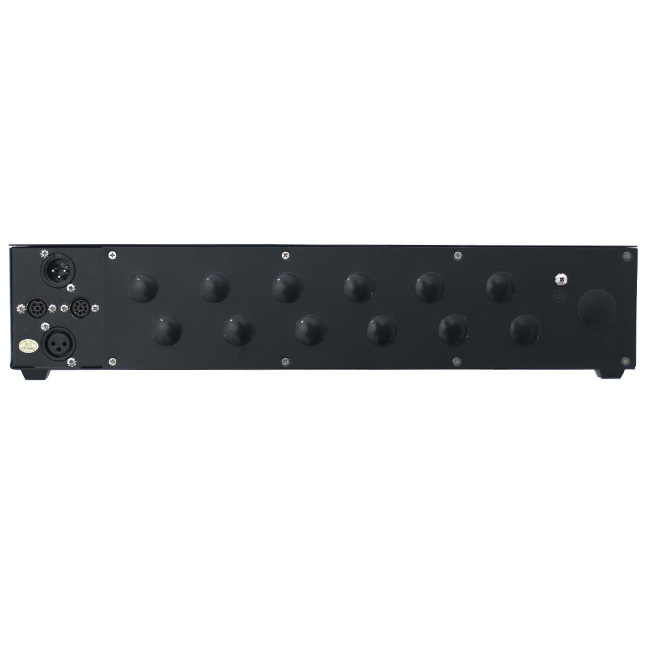

• Channel-outputs on the rearpanel via pole connectors
• Only for professional use
• Control: Analog 0-10 V; Stand-alone; DMX
• Housing design: (19") 48.3 cm rack installation 2 U

Max. power output: 27600 W
DMX channels: 6

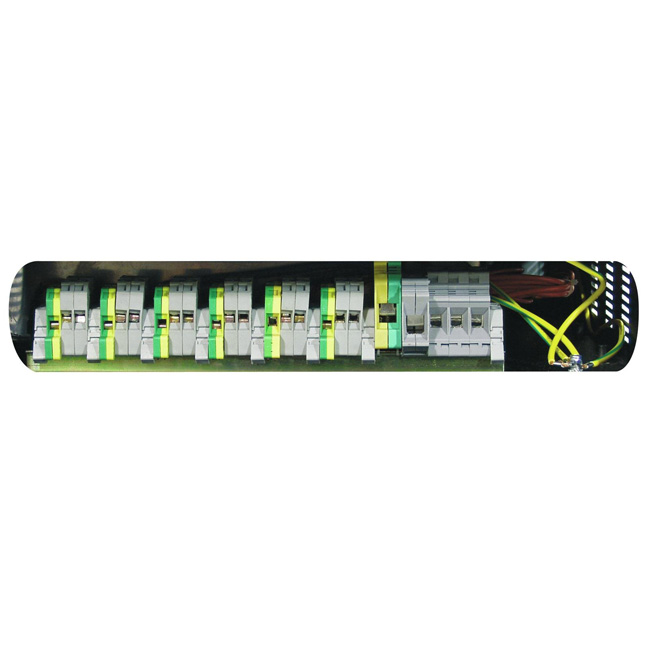

Power connection: Mains input screw terminal
Control:
Analog 0-10 V
Stand-alone
DMX
Color: Black
Max. output per channel: 4600 W
Housing design: (19") 48.3 cm rack installation 2 U
Width: 48,3 cm
Height: 8,9 cm
Depth: 42 cm
Weight: 7,70 kg
Power supply: 230-380 V AC, 50 Hz
Max. power output: 27600 W
Max. current: 120 A
Number of control channels: 6
Max. output/channel: 4600 W
Max. current/channel: 20 A
Integrated programs: 12
Output sockets: via pole connectors
Circuit breaker: 6 x C 20 A
Dimensions (W x D x H):
420 x 482 x 95 mm
Rack installation with 2 U
Minimum mounting depth: 500 mm
