• HDMI® 4 In / 1 Out for UltraHD
• Lossless High-Definition Movie Soundtracks
• True Power from Discrete Amplifiers

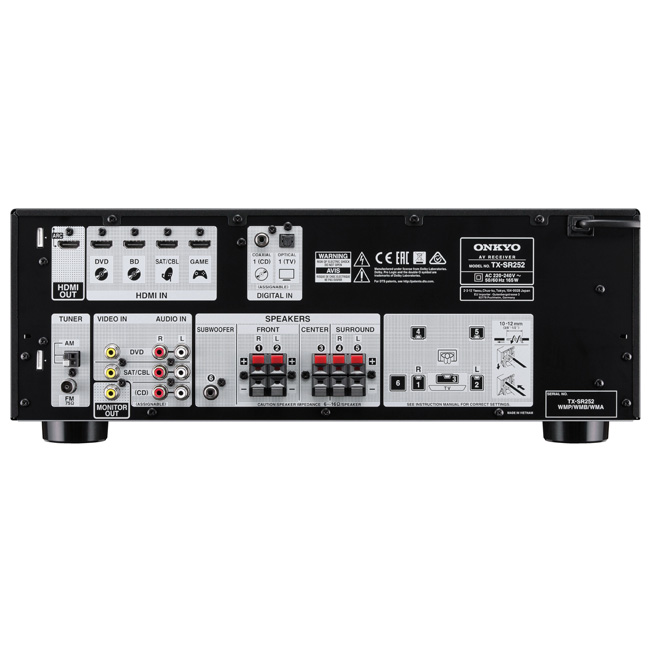

• Easy Connection Guide on Back Panel
• Front USB Port for MP3, WMA, and AAC Playback



HIGHLIGHTS
100 W per Channel
HDMI® 4 In / 1 Out (4K UltraHD / HDCP 2.2 / 4:4:4 Color Space)
True Driving Power from Discrete Amp Circuits
USB Port for MP3/WMA/AAC Playback
Quality 192/24-bit DAC

AMPLIFIER FEATURES
100 W/Ch (6 Ω, 1 kHz, 0.7% THD, 1 Channel Driven, IEC)
Discrete Output Stage Circuitry
Five-Channel Analog Amplifiers

PROCESSING FEATURES
HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
192 kHz/24-bit DAC for All Channels
SACD Playback via HDMI (2.8 MHz, 2 Channels)
Direct Mode

CONNECTION FEATURES
4 HDMI Inputs and 1 Output
USB Port (Front) for Music Playback via Flash Drive
2 Composite Video Inputs and 1 Output
2 Digital Audio Inputs (1 Optical and 1 Coaxial)
3 Analog Audio Inputs (3 Rear)
Subwoofer Pre-Out
Headphone Jack

OTHER FEATURES
A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
HDMI Passthrough Function
Tone Control (Bass/Treble)
3-Mode Display Dimmer (Normal/Dim/Dimmer)
30 FM/AM Random Presets

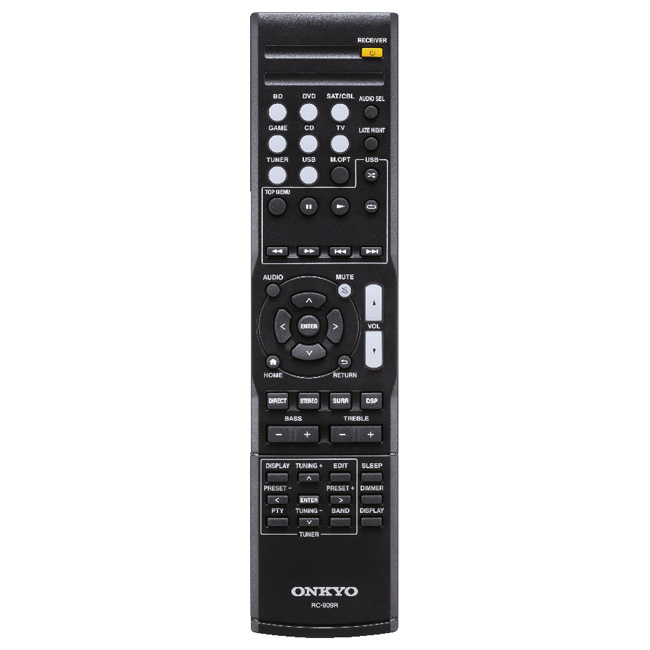

Full-Function RI (Remote Interactive) Remote Control
Sleep Timer
AM/FM with RDS

SPECIFICATIONS

Amplifier Section
Power Output:
Front L/R          100 W/Ch (6 Ω, 1 kHz, 0.7% THD, 1 Channel Driven, IEC)
Center              100 W (6 Ω 1 kHz, 0.7% THD, 1 Channel Driven, IEC)
Surround L/R     100 W/Ch (6 Ω, 1 kHz, 0.7% THD, 1 Channel Driven, IEC)
THD+N (Total Harmonic Distortion + Noise): 0.06% (20 Hz–20 kHz, Half Power)
Input Sensitivity and Impedance: 250 mV/47 kΩ (Line)
Frequency Response: 10 Hz–70 kHz/+0 dB, -3 dB (Line Pure Direct Mode)
Tone Control:
±6 dB, 100 Hz (Bass)
±6 dB, 10 kHz (Treble)
Signal-to-Noise Ratio: 98 dB (Line, IHF-A)
Speaker Impedance: 6 Ω–16 Ω

Video Section
Input Sensitivity/Output Level and Impedance: Video 1.0 Vp–p/75 Ω (Composite)

Tuner Section
Tuning Frequency Range:
FM 87.5 MHz–108 MHz
AM 531 kHz–1,602 kHz
FM/AM Preset Memory: 30 Stations

General
Power Supply: AC 220–240 V~, 50/60 Hz
Power Consumption: 165 W
Standby Power Consumption: 0.45 W
Dimensions (W x H x D): 435 x 168 x 326.5 mm
Weight: 7.3 kg
